Flood Light Helipad Heliport Helideck LED Light

Brand Name : MF

Model Number : MF-HP-F1

Certification : CE, ROHS, CB,MSDS, etc.

Place of Origin : China

MOQ : 1

Price : USD168~2017/PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 PCS/Month

Delivery Time : 7~21 days

Packaging Details : Carton

Weight(Kg) : 2.4

Humidity : 0~100%

Operation Mode : 24hours Operation

Transport Package : Carton

Irradiation Distance : 25-30meter

Ambient Temperature(ºC) : -55~70

Wind Speed : 80m/S

Flash Characteristics : Steady Burning

Specification : 23*23*165mm

Production Capacity : 5, 000PCS/Month

Contact Now

Product Description

Model No.	MF-HP-F1
Frequency Range	50Hz--60Hz
Light Quality	Bright, Intensity
Voltage	110V~240V
Material	Coated Stainless Steel
Working Temperature	-55~70°C
Light Color	white
Certificates	CE FC ROHS CB etc.
Product Dimansion	2323165mm
Warranty	3years
Life Time	50000h
Protection Level	IP66

Flood Light Helipad Heliport Helideck LED Light

LED Surface Heliport Flood Light is used for illuminate the whole heliport area at night. It is specially designed for

helipads/Helideck, providing glare-free, uniform surface lighting for landing and loading activities. LED Surface Floodlights improve pilot depth perception by reflecting the surface of the helipad/helideck, allowing pilots to better estimate their altitude during landing.

Compliance

*ICAO Annex 14 Volume2 Heliports 5.3.9

*FAA AC 150/5390-2B Heliport Design Guide

*CAP437

Features

Electrical

*High intensity, energy efficient LED, glare-free floodlight

*Period of LED Life ≥100,000 hours

*Power supply available in AC(110-240VAC), DC48V, DC12V, etc

*Ultra-efficient LED reduce power consumption

Physical

*The enclosure is made out of stainless steel powder coated in electrostatic field, ensure it have good weather resistance

*The assembly has a low profile of less than 25cm and mounts to frangible point

*Specially custom lens optic designed specifically for helipad operation

Optional

*Infrared LED for pilot using NVG(Night Vision Goggles)

*Controller for power supplying and turn ON/OFF light

*VHF pilot to ground remote control

*Solar power system

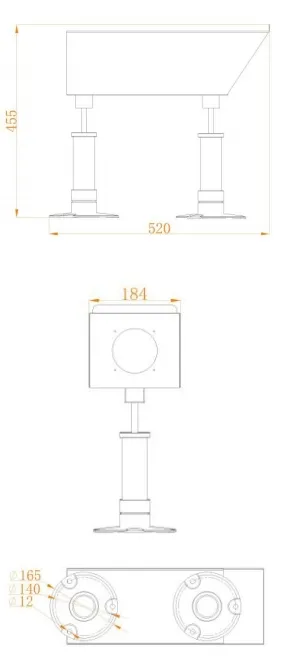

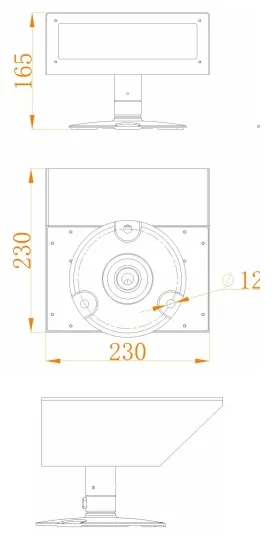

Dimension

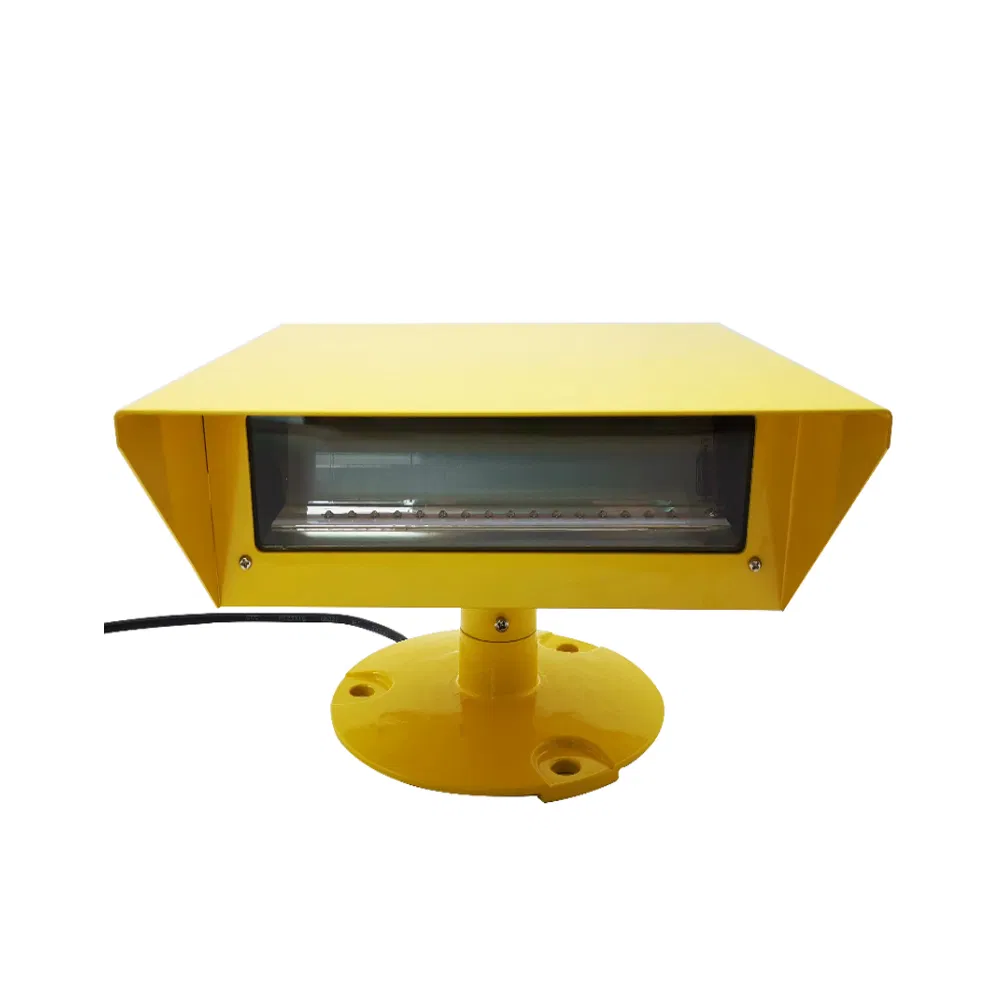

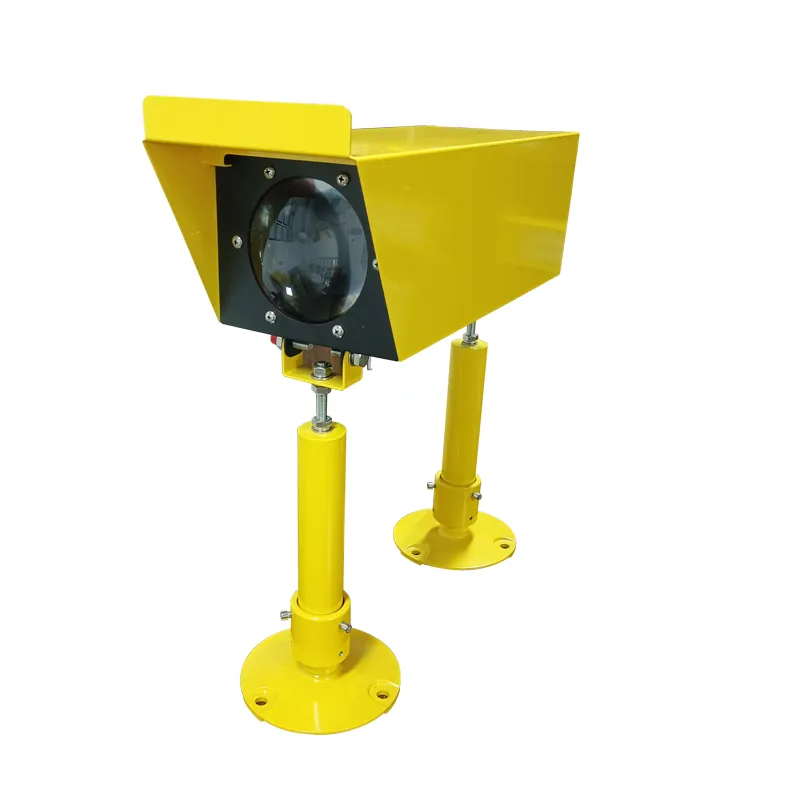

Detailed Photos

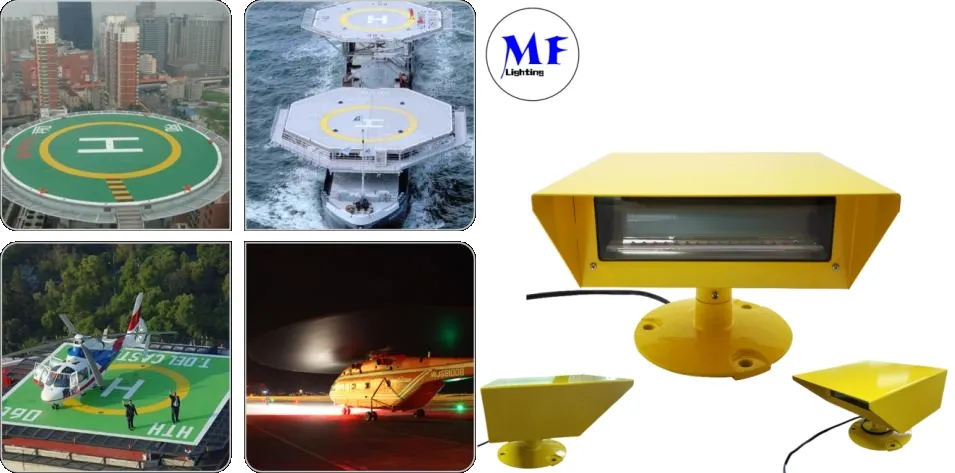

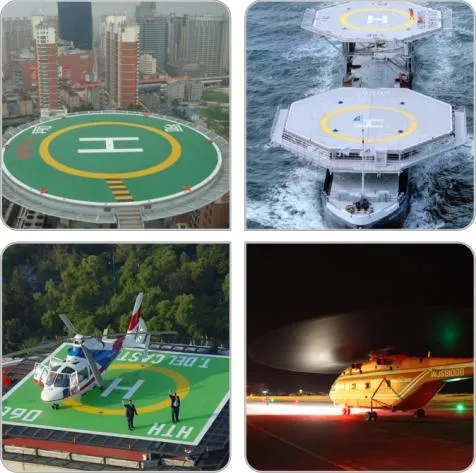

Application

*Helipad/Heliport /Helideck

*Permanent, Temporary, Emergency Helipad/Heliport/Helideck

*OFFSHORE/ ONSHORE USAGE

*Mil-itary & NVG operations

Flood Light Helipad Heliport Helideck LED Light

Packaging & Shipping

Flood Light Helipad Heliport Helideck LED Light

Company Profile

Flood Light Helipad Heliport Helideck LED Light

FAQ:

Q1: Are you a manufacturer?
MF: Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development, as well as manufacturing, and we operate based on ISO quality management since 2009.

Q2: Can I order a sample of the LED Light?
MF: Yes, we welcome sample orders to test and check the quality of our products. Mixed samples are also acceptable.

Q3: What is the lead time for the LED Light?
MF: For sample orders, the lead time is 3-7 days, and for mass production orders, it is 15-25 days. The exact lead time depends on the order quantities.

Q4: How do you ship the finished products?
MF: We offer optional shipping methods such as by SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc.).

Q5: Can I print my logo on the LED Light?
MF: Yes, we provide OEM service to our customers. We can help to make the label and color box according to your requirements.

Q6: How do I proceed with an order for the LED Light?
MF: Firstly, please let us know your detailed requirements and application environment. Secondly, we will recommend some suitable products and solutions to you based on your request. Thirdly, after confirming all the details, customers will issue a purchase order and make the payment to confirm, and then we will start production and arrange shipment.

Q7: How do you handle defective products?
MF: All of our products are produced in strict quality control systems, and the defective rate is less than 0.2% according to our shipment records. We offer a 5-year warranty for this product. If there is any defect during the warranty period, please provide pictures or videos of the defective lights in working situations, and we will ship new lights to you within a few days or together with your next order.
